How RTK Networks Work in Surveying: A Complete Guide

The era of the lone tripod guarding a private base station in the middle of a BC forest is officially over. For years, professional surveyors have accepted the reality of wasting hours on hardware setup and security, only to face signal degradation in mountainous terrain or urban canyons. Discovering how RTK network works surveying in 2026 allows you to bypass these logistical nightmares and reclaim your field time. You know the frustration of maintaining expensive equipment that tethers your productivity to a single site; it’s a bottleneck that modern innovation has finally dismantled.

This guide explores the technical evolution of positioning, detailing how Virtual Reference Stations (VRS) deliver centimetre-level precision directly to your rover without the need for private base stations. We’ll break down the transition from hardware-heavy setups to the software-driven model that’s revolutionizing field performance across Canada. By examining the mechanics of multi-constellation GNSS support, we’ll show you how to achieve faster site arrival-to-measurement times while reducing your overall hardware overhead. You’ll gain the technical authority to elevate your professional standards by adopting a more advanced, reliable infrastructure.

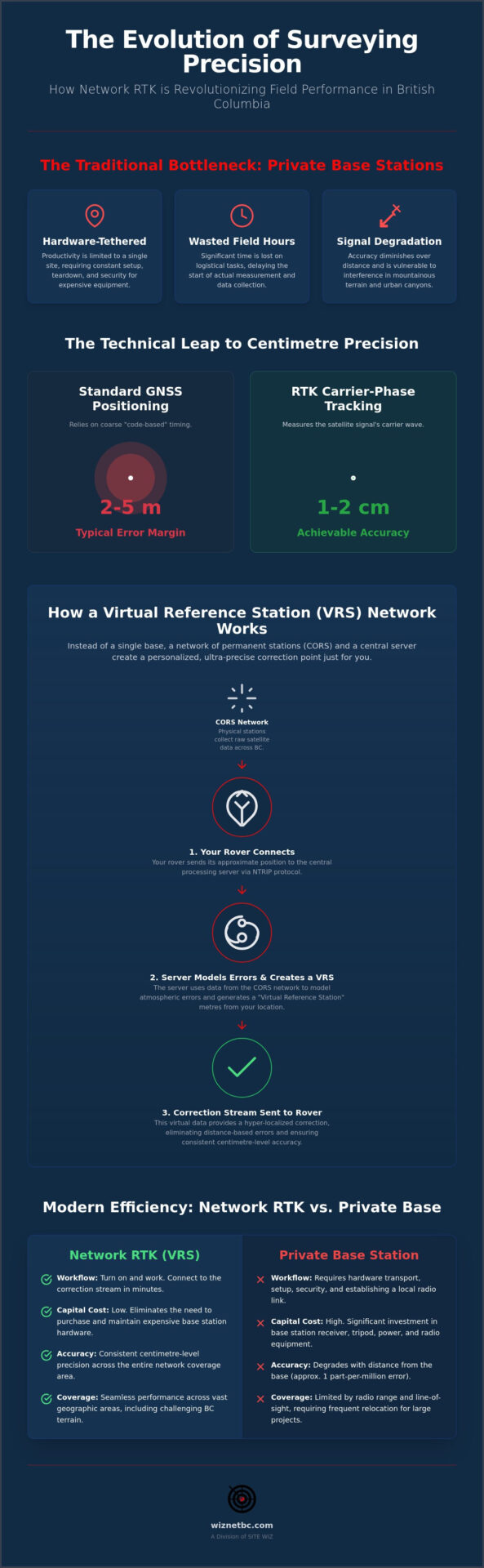

The Evolution of Precision: Understanding How RTK Surveying Works

Standard GNSS serves the needs of general navigation, but it lacks the granular detail required for professional land measurement. Most consumer devices rely on code-based positioning, which measures the time it takes for a satellite’s digital signature to reach the receiver. This method is inherently limited by a 2 to 5 metre error margin due to unavoidable atmospheric interference. Real-Time Kinematic (RTK) positioning revolutionizes this workflow by shifting the focus from the code to the carrier wave itself. This technical leap is the foundation for achieving the precision demanded by modern BC infrastructure projects.

The core relationship relies on a sophisticated dialogue between a reference station and a mobile receiver. Understanding how RTK network works surveying helps professionals realize that the "Rover" doesn’t just calculate a position; it actively reconciles its data against a stream of real-time corrections. By leveraging this connection, the system identifies and subtracts common errors shared by both units. It’s a process of constant refinement. This ensures every shot taken in the field reflects true geographic reality, regardless of the distance from the satellite constellation.

Carrier-Phase Tracking: The Secret to Centimetre Accuracy

Standard GPS measures the "code" sent by satellites, which is a relatively coarse signal. In contrast, RTK measures the phase of the carrier wave. Because the GPS L1 signal has a wavelength of approximately 19cm, measuring the wave’s phase allows for far tighter tolerances than code-based methods. The system must resolve "integer ambiguity," which is the challenge of determining exactly how many full wavelengths exist between the satellite and the receiver. Once this is solved, the position is "fixed," unlocking unmatched precision. Resolving this ambiguity requires the receiver to track multiple satellites simultaneously. This redundancy allows the system to achieve a stable solution even in challenging environments.

Common Sources of GNSS Error in Surveying

Satellite signals don’t travel through a vacuum. They pass through the ionosphere and troposphere, where charged particles and water vapour "colour" the signal timing, causing significant delays. Additionally, tiny inaccuracies in satellite clocks or their orbital positions, known as ephemeris errors, can compromise data integrity. While these shifts are microscopic, the speed of light translates them into significant ground-level inaccuracies. RTK corrections are the solution. By calculating these discrepancies at a fixed station and broadcasting them to the rover, the system eliminates these atmospheric and orbital hurdles in real-time. Professional networks monitor these deviations constantly, ensuring the correction data remains a reliable anchor for field operations.

The Mechanics of a Virtual Reference Station (VRS) Network

Traditional RTK relies on a single physical baseline. As the rover moves away from that base, accuracy degrades at a rate of approximately one part per million (ppm). Understanding how RTK network works surveying in a modern context requires looking at how a Virtual Reference Station (VRS) effectively solves this distance problem. Instead of one base, a network of physical, permanent stations known as Continuously Operating Reference Stations (CORS) feeds data into a central server. This server models the atmospheric and orbital errors across the entire province, creating a comprehensive, real-time map of corrections.

When your rover initiates a connection, it broadcasts its approximate location via an NMEA string. The server receives this data and instantly generates a virtual base station located just metres from your actual position. By virtualizing the infrastructure, the system effectively reduces the baseline distance to nearly zero. This removes the ppm error that often plagues traditional setups; it ensures that your precision remains consistent whether you are in downtown Vancouver or the outskirts of Kamloops. This infrastructure allows professionals to access high-precision VRS data without the capital expense of owning dozens of private bases.

From Physical Base to Virtual Station

The server doesn’t just pass through data from the nearest tower. It calculates a localized set of corrections tailored to your exact coordinates by interpolating data from multiple physical stations. This collaborative monitoring allows the network to identify localized ionospheric disturbances that a single base station might miss. Because the virtual station is "moved" with the rover, you maintain a fixed-solution stability that was previously impossible over long distances. This eliminates the need for 30-minute tripod setups and the constant worry of base station security.

Multi-Constellation GNSS: Leveraging More Than Just GPS

A robust network must track more than just the American GPS constellation. By integrating signals from GLONASS, Galileo, and BeiDou, a multi-constellation GNSS support system significantly increases the number of available satellites. This redundancy is vital for BC’s unique geography. In the "urban canyons" of the Lower Mainland or the dense timber of the Interior, having 30 or more satellites in view rather than 10 ensures faster initial fix times. It also maintains that fix when the horizon is partially obstructed. Understanding how RTK network works surveying also involves recognizing that more satellites translate to better geometry, higher reliability, and the ability to work in environments that would leave standard receivers searching for a signal.

Network RTK vs. Private Base Stations: A Modern Comparison

Choosing between a private base station and a network subscription is no longer just a hardware preference; it’s a fundamental business decision regarding operational scalability. While owning a private base station represents a significant capital expenditure (CAPEX), the true cost lies in the "hidden" drains on field productivity. Every morning spent scouting a secure location, leveling a tripod, and monitoring battery levels is time diverted from actual measurement. By understanding how RTK network works surveying in a professional capacity, firms can transition to an "infrastructure as a service" model that prioritizes site arrival-to-measurement speed. Before committing to any solution, consulting a dedicated RTK network buying guide for BC land surveyors can help firms evaluate the right infrastructure for their specific operational needs.

Risk management is another critical factor where networks outperform legacy setups. A private base station is a single point of failure. If the battery dies, the radio link drops, or the hardware is stolen from a roadside, the entire field crew grinds to a halt. Professional networks eliminate these vulnerabilities by utilizing redundant data streams from multiple permanent stations. If one physical site loses power, the central server automatically recalibrates the solution using the remaining CORS infrastructure. This provides a level of stability and security that a standalone tripod simply cannot match in high-stakes environments.

The ROI of Eliminating the Base Station

The financial impact of removing the base station becomes clear when you calculate the cumulative time savings. If a crew spends 30 minutes on setup and 30 minutes on breakdown each day, they lose 20 hours of billable time over a standard 20-day work month. That’s nearly two and a half days of productivity recovered by simply turning on the rover and connecting to the network. Reducing the amount of heavy gear also simplifies logistics; it allows smaller vehicles to be used and decreases the physical strain on crews. On large-scale projects, a network subscription ensures all crews are working on the same coordinate framework without the headache of coordinating multiple private bases.

When a Private Base Might Still Be Necessary

Despite the clear advantages of virtualization, certain scenarios in British Columbia still require a physical base station. When working in extreme remote areas beyond cellular coverage or satellite radio reach, a private base provides the only viable path to centimetre-level accuracy. Highly specialized long-term monitoring projects in deep wilderness areas may also justify a permanent local setup if connectivity is non-existent. However, for the vast majority of professionals in the Lower Mainland, the Interior, and Vancouver Island, a hybrid or pure network approach has become the standard. It offers the perfect balance of precision, reliability, and modern efficiency.

Practical Field Workflow: Connecting to RTK Corrections

Transitioning from the theoretical mechanics of a network to a live measurement requires a robust digital bridge. This connection is facilitated by the NTRIP protocol, or Networked Transport of RTCM via Internet Protocol. It serves as the standard language for streaming high-precision correction data over the mobile internet. Understanding how RTK network works surveying in a practical sense means mastering the handshake between your rover and the correction server. It is not enough to simply have a signal; you must ensure the data packets are moving correctly to resolve the carrier-phase ambiguities mentioned earlier.

The workflow begins when your rover broadcasts its approximate location using an NMEA position string. This rough coordinate informs the network server of your general vicinity, allowing it to calculate the necessary corrections for your specific area. Once the server identifies your location, it begins streaming RTCM (Radio Technical Commission for Maritime Services) data packets back to your device. These packets contain the precise satellite clock and atmospheric adjustments required to refine your position. By reconciling these real-time streams, your data collector moves from a "Float" solution to a "Fixed" state, which is the gold standard for centimetre-level precision.

The NTRIP Connection Process

Configuring your rover requires three specific pieces of information: the server’s IP address, the port number, and the designated mount point. A stable cellular data link via LTE or 5G is the backbone of this process. Without a consistent internet connection, the stream of RTCM packets is interrupted, causing your solution to degrade. Regardless of your hardware brand, troubleshooting usually starts with verifying your credentials and ensuring your data plan is active. To experience this seamless connectivity firsthand, you can explore WizNET VRS subscription options tailored for BC professionals.

Understanding Mount Points and Data Formats

Mount points act as specific "channels" on the network server, each offering different data formats or constellation support. While legacy systems might require RTCM 2.3, most modern receivers utilize RTCM 3.2 (MSM) to take full advantage of multi-constellation GNSS support. Choosing the correct mount point ensures your rover receives data for GPS, GLONASS, Galileo, and BeiDou simultaneously. It is also vital to verify that your data collector’s coordinate system and datum are correctly aligned with the network’s reference frame. This alignment prevents "datum shifts" that can introduce systematic errors into your survey, ensuring your field data matches the provincial legal framework perfectly.

Optimizing Surveying Performance with WizNET in British Columbia

British Columbia presents a topographical puzzle that generic global correction services often fail to solve. From the dense urban corridors of the Lower Mainland to the rugged timberlands of Vancouver Island, the environment demands a localized infrastructure that understands provincial surveying standards. Understanding how RTK network works surveying in this specific context allows firms to overcome localized signal challenges that are unique to the Pacific Northwest. By leveraging a network built by professionals for professionals, you ensure that your centimetre-level accuracy remains stable; regardless of the terrain or project complexity.

A significant advantage of the WizNET infrastructure is its hardware-agnostic design. Surveying firms often manage a diverse fleet of receivers from different manufacturers, and a localized RTK network for land surveyors provides the inclusivity needed to support this variety. This flexibility allows growing firms to scale their operations without being locked into a single equipment ecosystem. By providing a unified correction stream across different hardware types, the network ensures that every rover on a site is working from the same precise reference frame. This consistency is the foundation of professional reliability in the field.

Reliable Corrections for Urban and Technical Projects

Construction layout and engineering surveys in dense urban centres require maximum potential from your GNSS hardware. WizNET’s multi-constellation GNSS support is engineered to maintain a fixed solution even when skyscrapers or heavy canopy obstruct the horizon. By tracking GPS, GLONASS, Galileo, and BeiDou simultaneously, the network provides the satellite redundancy necessary to work in "urban canyons" that would otherwise cause signal loss. This commitment to maximum uptime ensures that critical infrastructure projects stay on schedule, providing a stable anchor for high-stakes measurements where there is no room for error.

Streamlining Your Professional Workflow

Modern surveying is defined by efficiency and the removal of operational barriers. Managing a single subscription for your entire fleet is far more effective than maintaining a fragmented collection of private base stations and radio licenses. This centralized approach allows you to access professional-grade data without the burden of hardware maintenance or site security. It revolutionizes the way crews transition from one project to the next. To experience the stability of a dedicated provincial infrastructure, elevate your field precision with a WizNET VRS subscription and unlock the full potential of your GNSS equipment today.

Master the Future of High-Precision Surveying

The transition from manual base station deployment to a virtualized infrastructure represents a significant leap in surveying productivity. By mastering the technical mechanics of how RTK network works surveying, you replace hours of logistical setup with immediate, centimetre-level results. This shift allows your crews to focus on the data rather than the hardware; it ensures that every measurement is anchored to a reliable, professional reference frame regardless of the site location.

Achieving this level of field performance requires a partner that understands the unique geographical challenges of British Columbia. With a professional VRS infrastructure that spans the province, you gain access to full multi-constellation support and hardware-agnostic compatibility. This empowers your firm to utilize its existing fleet while benefiting from unmatched precision in urban centres and rugged interiors alike. It is time to remove the operational barriers that hold your projects back and adopt a more stable, scalable solution.

Unlock Centimetre Precision with a WizNET Subscription and experience the stability of a network designed for the modern professional. Your path to a more efficient, reliable, and profitable workflow starts today.

Frequently Asked Questions

What is the difference between RTK and a VRS network?

RTK is the underlying positioning technique, while a VRS network is the infrastructure that delivers corrections. Traditional RTK relies on a single physical baseline between one base and one rover. A VRS network utilizes multiple permanent stations to model atmospheric errors and create a virtual base station specifically for your location, which eliminates distance-dependent accuracy loss.

Do I need a specific brand of GNSS receiver to use an RTK network?

No, you don’t need a specific brand of hardware. Most professional networks are hardware-agnostic and support any GNSS receiver capable of processing RTCM 3.x data via NTRIP. This allows surveying firms to maintain a mixed fleet of equipment from various manufacturers while receiving the same high-precision correction stream across all devices.

How accurate is an RTK network compared to a traditional base station?

An RTK network provides centimetre-level accuracy that is often more consistent than a single-base setup. Because the VRS server calculates a virtual base just metres from your rover, it effectively reduces the baseline to nearly zero. This removes the "parts per million" error that typically increases as a rover moves further away from a physical tripod.

What happens if I lose my cellular connection while using an RTK network?

If your cellular data link is interrupted, the stream of real-time corrections will stop. Your receiver will eventually drop from a "Fixed" to a "Float" solution, causing your precision to degrade from centimetres to decimetres or metres. A stable LTE or 5G connection is the vital backbone for maintaining professional-grade accuracy in the field.

How many satellites do I need to achieve a fixed RTK solution?

While a minimum of five or six satellites is technically required for a fix, modern receivers typically track 15 to 30 satellites simultaneously. Utilizing multi-constellation GNSS support ensures that your rover can see satellites from GPS, GLONASS, Galileo, and BeiDou. This high satellite count significantly improves geometry and reduces the time needed to reach a stable, fixed solution.

Beyond specialized surveying, these multi-constellation benefits are utilized by companies like Letstrack to provide dependable GPS tracking solutions and IoT software for personal and commercial use.

Can I use an RTK network for drone surveying and UAV mapping?

Yes, RTK networks are the standard for high-precision drone surveying and UAV mapping projects. By connecting a compatible drone or its ground station to a VRS network, you can achieve centimetre-level positioning for every captured image. This reduces or even eliminates the need for physical ground control points, which streamlines the entire mapping workflow.

What is NTRIP and why is it used in RTK surveying?

NTRIP stands for Networked Transport of RTCM via Internet Protocol and acts as the digital bridge for data transmission. It is the standardized protocol used to stream correction data over the internet to your mobile receiver. Understanding how RTK network works surveying involves recognizing NTRIP as the secure channel that delivers the necessary RTCM packets to resolve your position.

Is an RTK network subscription worth the cost for a small surveying firm?

A subscription is highly cost-effective for small firms because it removes the capital expenditure of purchasing and maintaining private base stations. By eliminating the 30 to 60 minutes spent on daily hardware setup and security, small teams can recover several billable hours each month. It provides the technical authority to compete on larger projects without the burden of extra hardware overhead.
