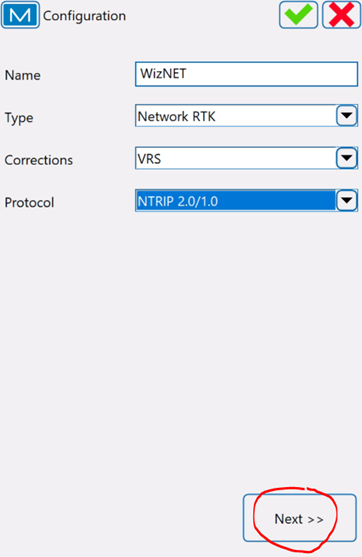

Receiver type is likely HiperVR but we support older receivers as well. Then hit Next

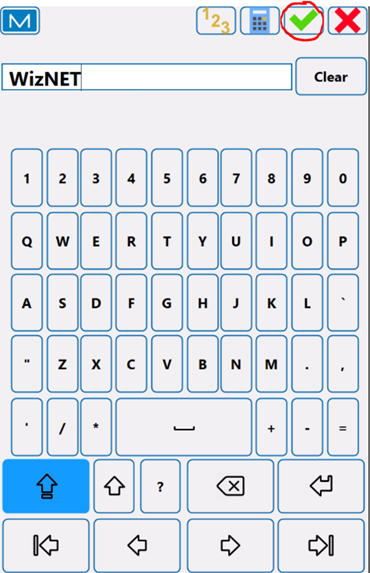

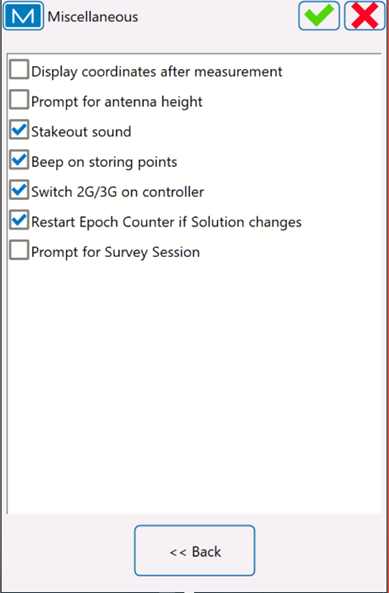

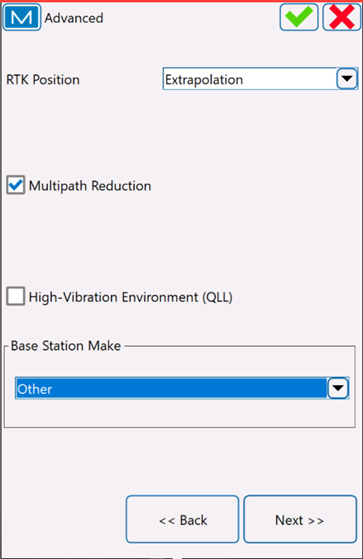

Continue hitting next until the last screen hit the green checkmark to save this new survey style.
Select your receiver from the list or Refresh to scan then select your receiver by it’s serial number

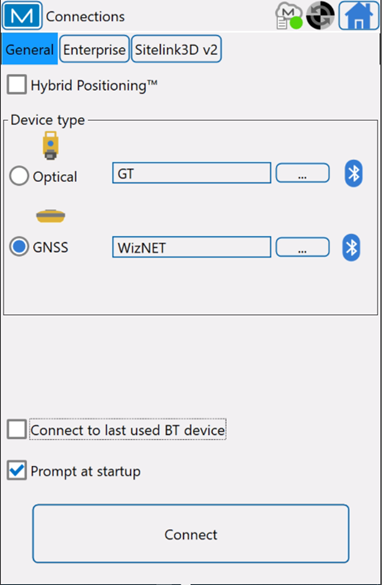

Hit Connect again

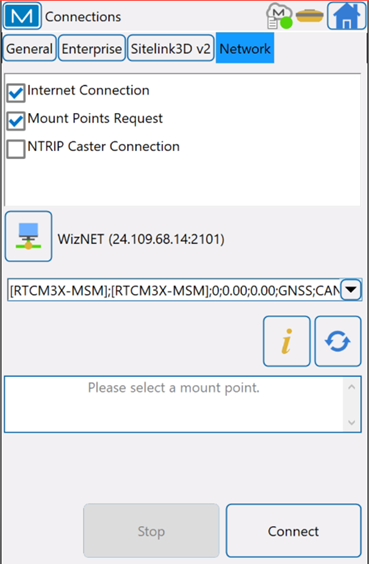

Once connected the software will query the available mountpoints from the network. Refresh by hitting the blue circle/arrows if needed.
From the dropdown list choose either RTCM32-MSM for a VRS (Virtual Reference Station) solution or [RTCM-3X-MSM] for a single baseline solution (Nearest physical base station). **Some older receivers should use RTCM-30(VRS) or [RTCM-30](Nearest) but only if the other 2 do not work.

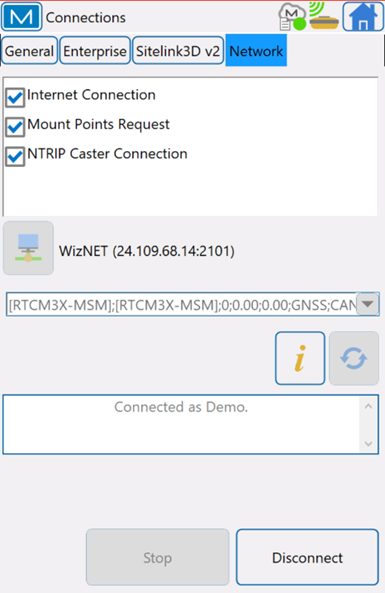

Make your selection and hit connect. You should see “connected as….”

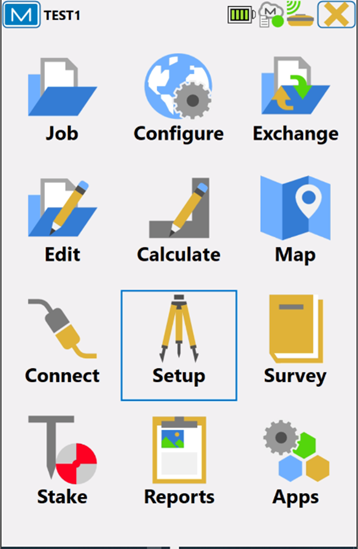

To confirm you are connected go to Setup

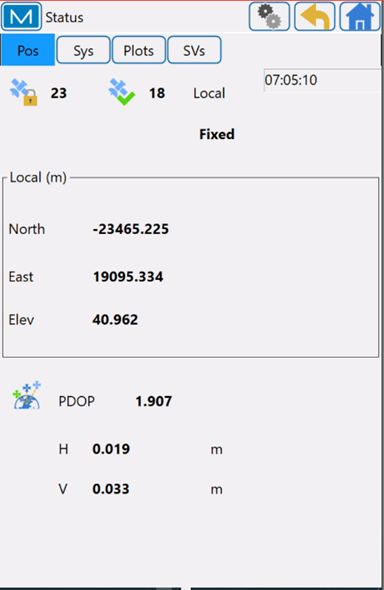

Then Status
You should see Fixed near the top of the screen.

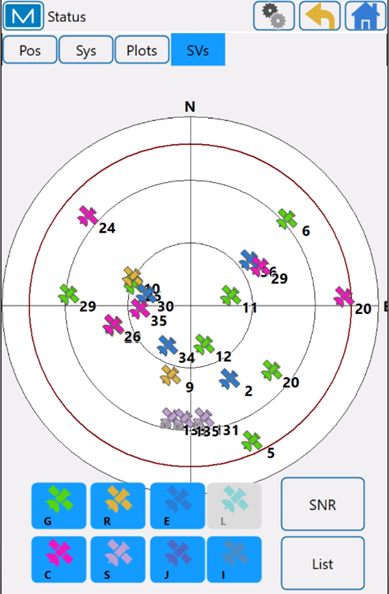

You can hit the SVs tab to see what satellites you are tracking
Hit List to see a list and confirm you are tracking all constellations. WizNET supports the latest available satellite systems: USA_GPS. RUSSIA_GLONAS. EUROPE_GAL, CHINA_BDS
